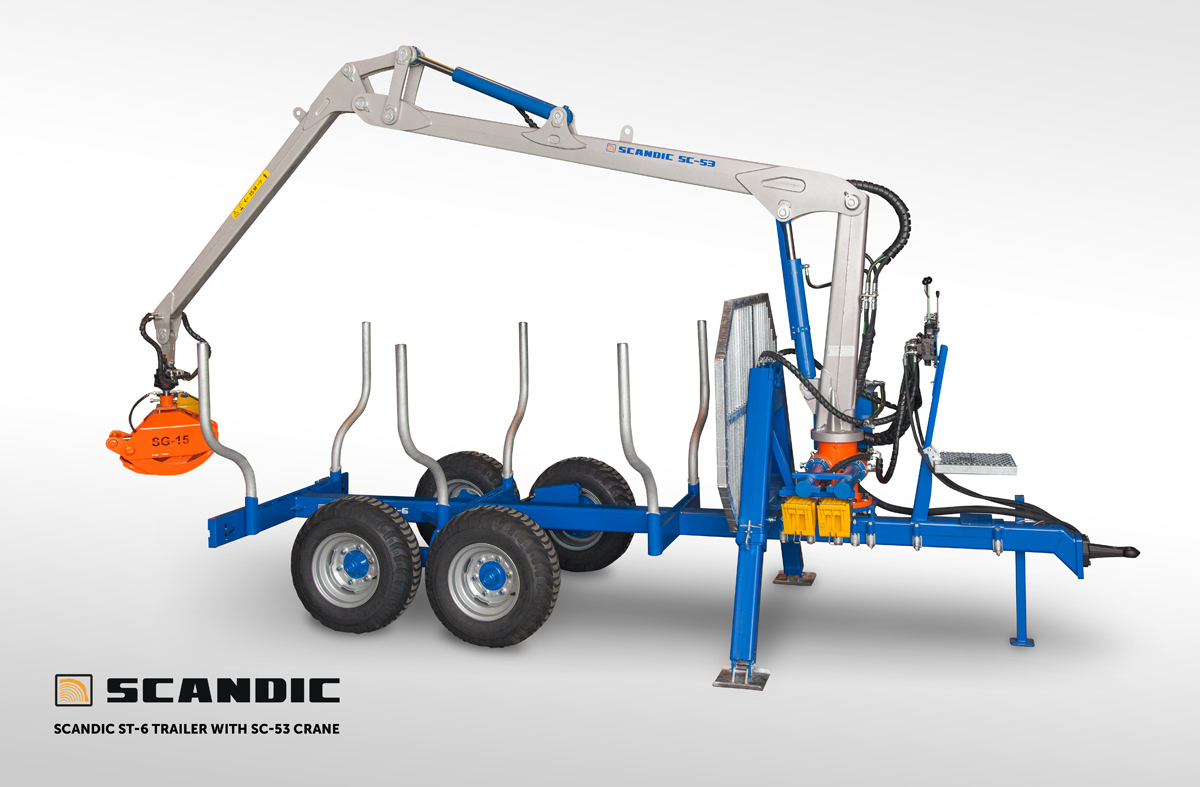

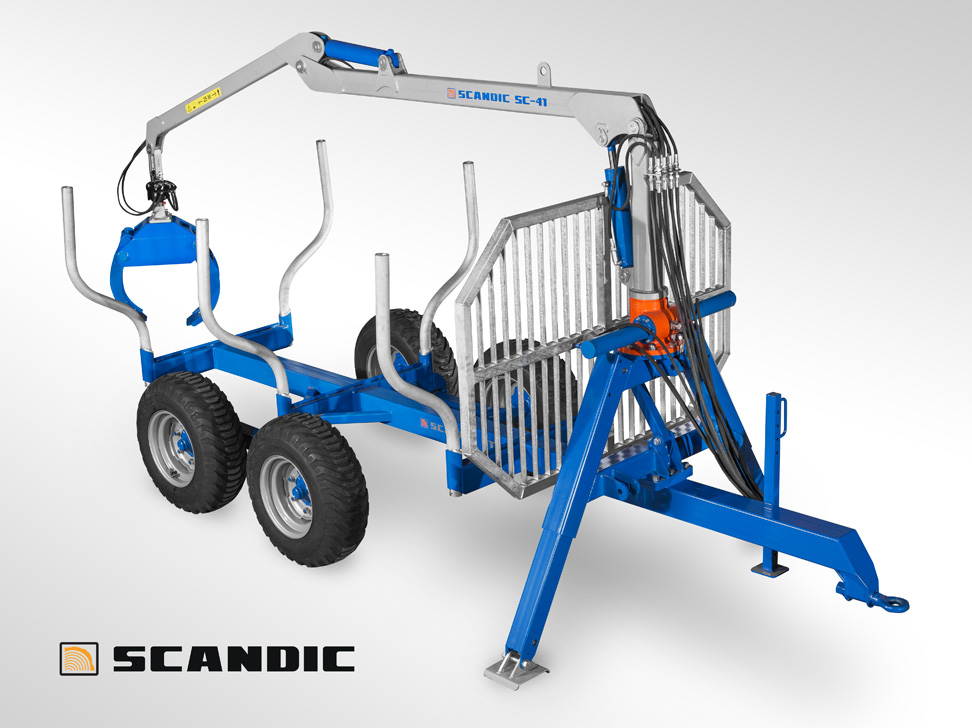

ST-6 FOREST TRAILER
Scandic ST-6 is affordable forest trailer for seasonal work. This budget-friendly trailer is designed for smaller forest and farm owners who do not need heavy forestry equipment for everyday use but are not willing to make sacrifices on build quality. It is perfect for carrying energy wood and up to 5 m timber from your local forest.
ST-6 is fully equipped forest trailer with reduced dimensions (4.9x1.8m). Lightweight design (trailer weights only 1100 kg) allows working on delicate forest floor and does not require heavy tractor.

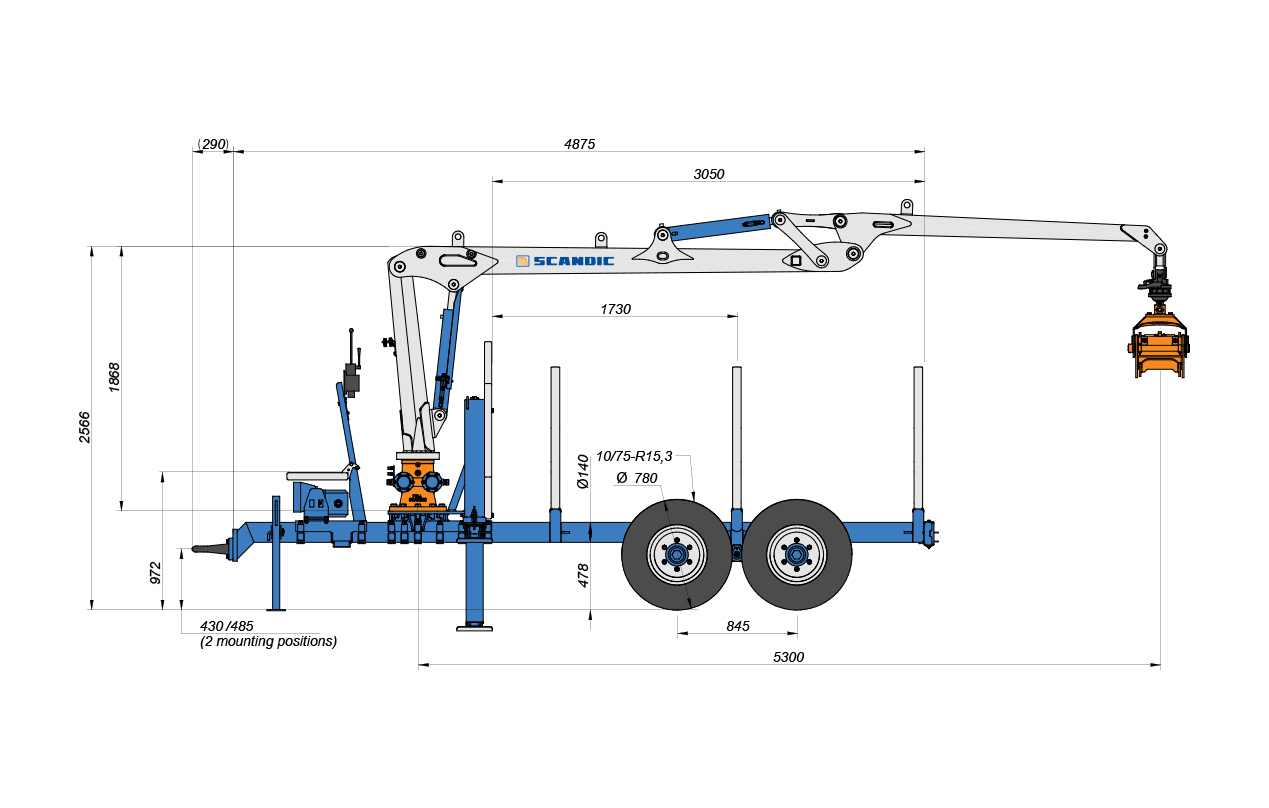

ST-6 can be equipped with cranes SC-41 or SC-53.
ST-6 features:
- - 1100 kg mass with load capacity up to 6000 kg
- - Zinc coated tubes and shield
- - Type-A support legs with moving footing
- - 10/75-15.3'' tires
- - Tandem angle tilt +/- 20 degrees
Otional extras:
- - Brakes: hydraulic, overrun or hand brakes
- - Platform with the valve holder for a bettew view of the loading area
- - Independent hydraulic system: 25 l/min or 87 l/min gearwheel pump attached to the PTO
- - Toolbox
- - Backlights
View other products:

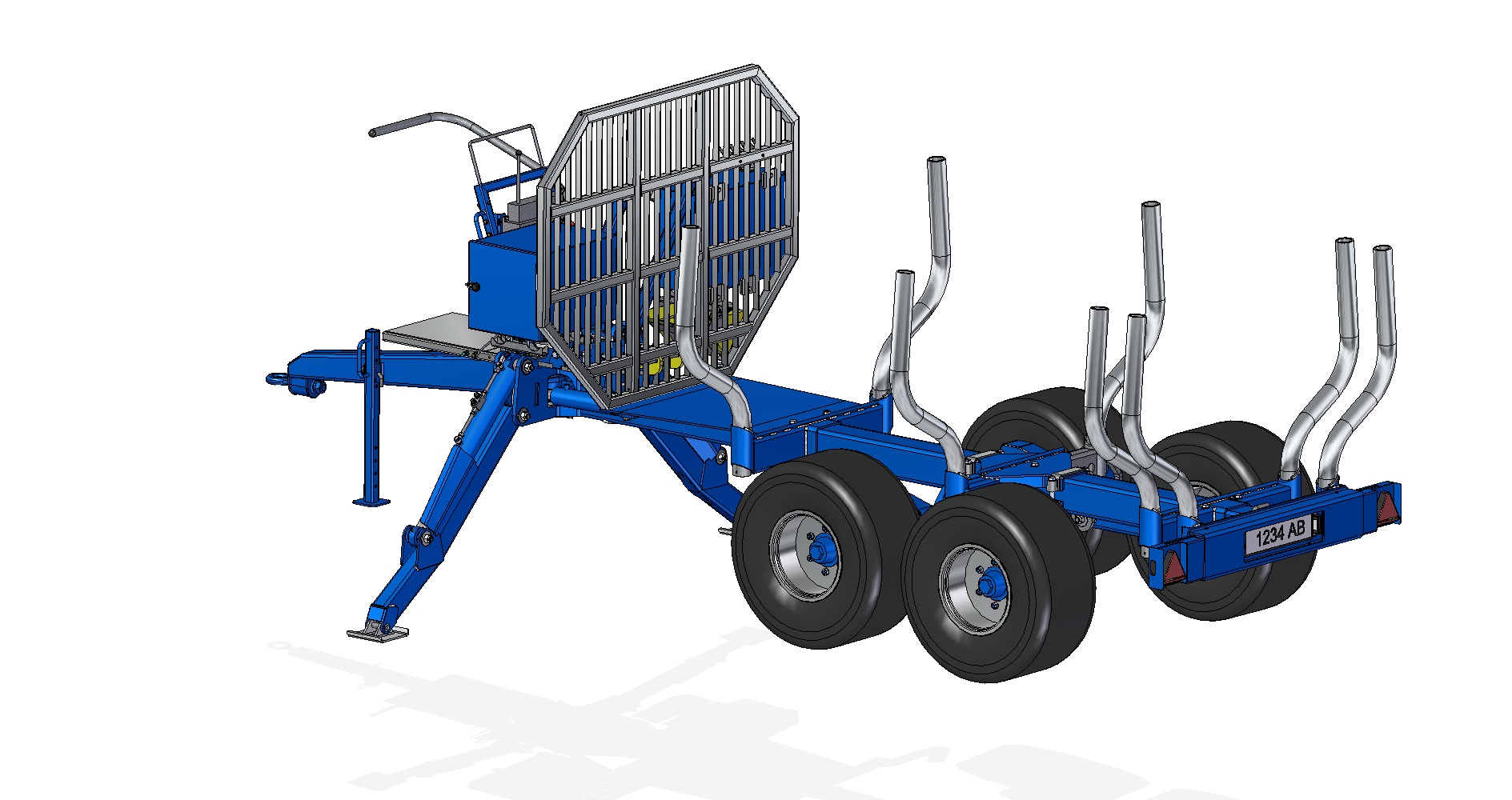

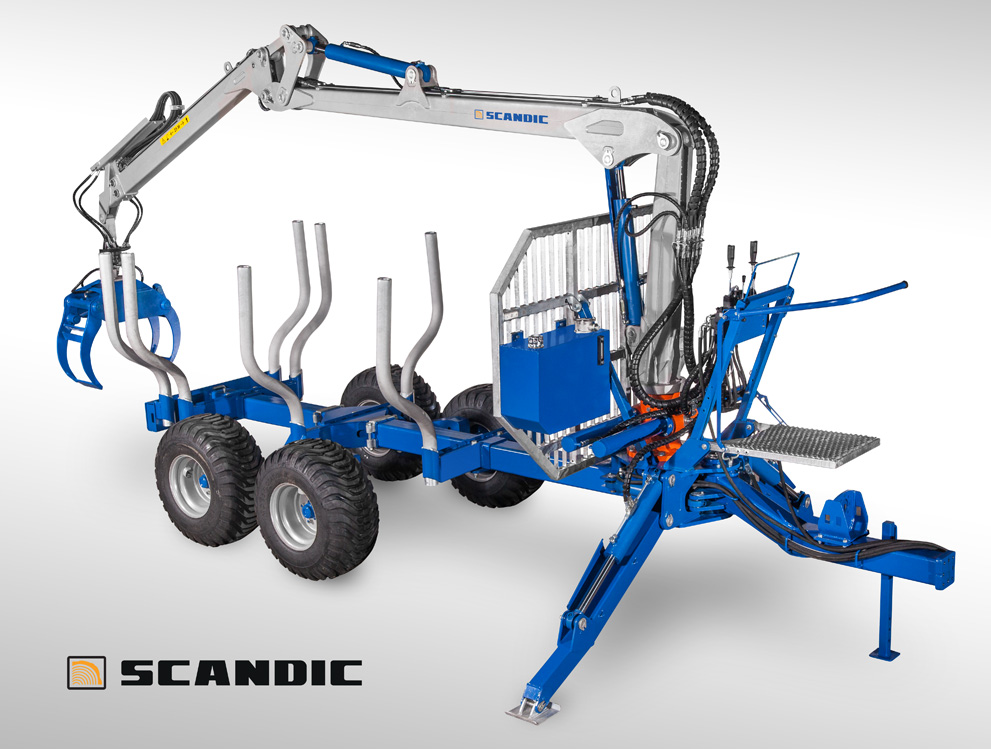

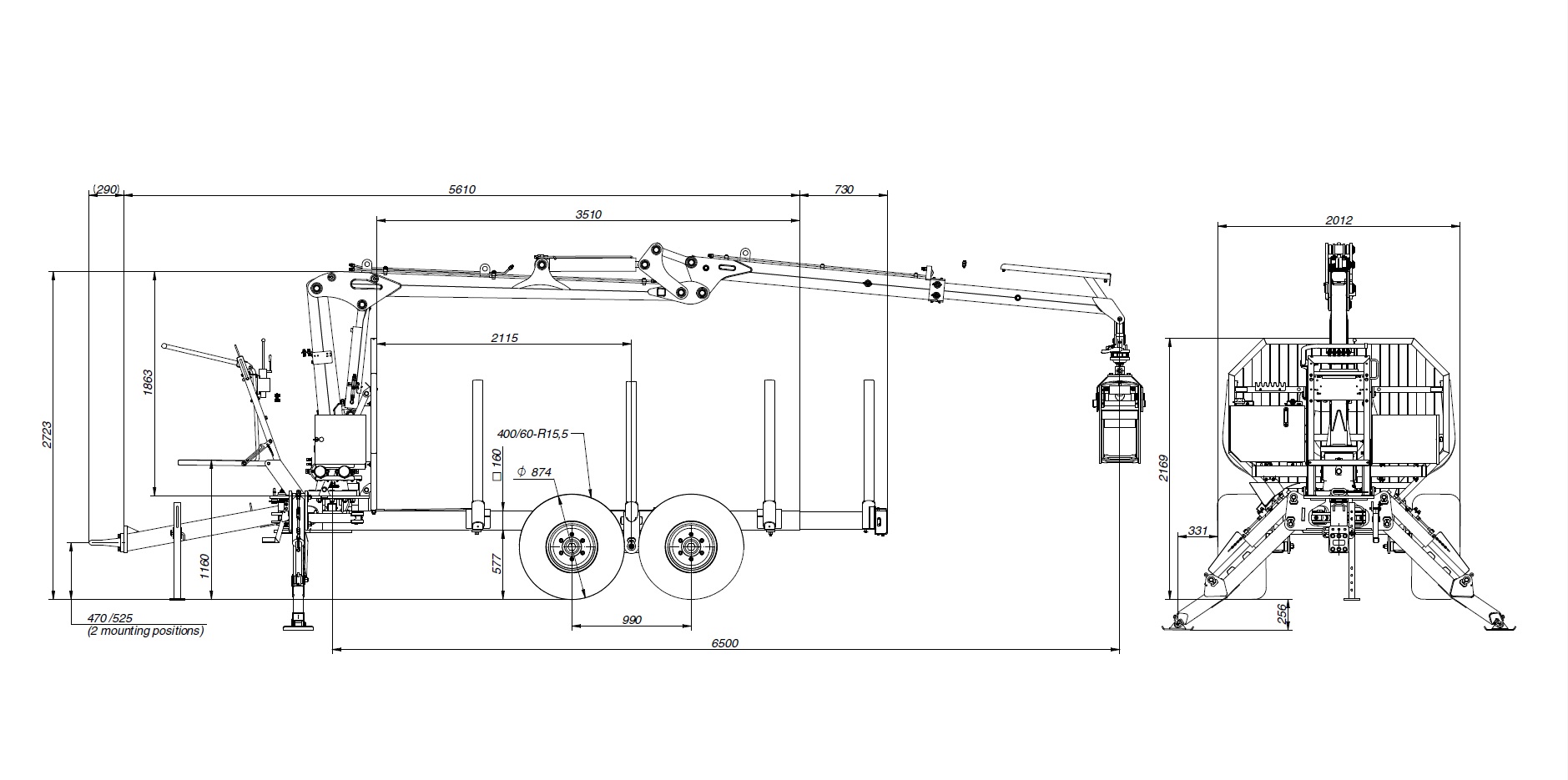

ST-8 FOREST TRAILER
Scandic ST-8 trailer is budgeted for seasonal user but can also withstand heavy year-round use.
ST-8 has 40 degrees drawbar rotation and tandem angle tilt 20 degrees. By adding 2 wheel inner drum drive you’ll get the most flexible forest trailer for difficult landscapes. ST-8 can be equipped with additional extras to suit your needs.
ST-8 features:
- - Drawbar angle +/- 40 degrees, tandem angle +/- 20 degrees
- - Type-A or type-B support legs with moving footing
- - Zinc coated tubes and shield
- - 1700 kg weight with load capacity up to 8000 kg
- - Street legal lights
Additional extras:
- - hydraulic or air brakes
- - 2WD / 4WD inner drum drive
- - Frame extension
- - Independent hydraulic system
ST-8 can be equipped with cranes SC-53 or SC-65.
View other products:

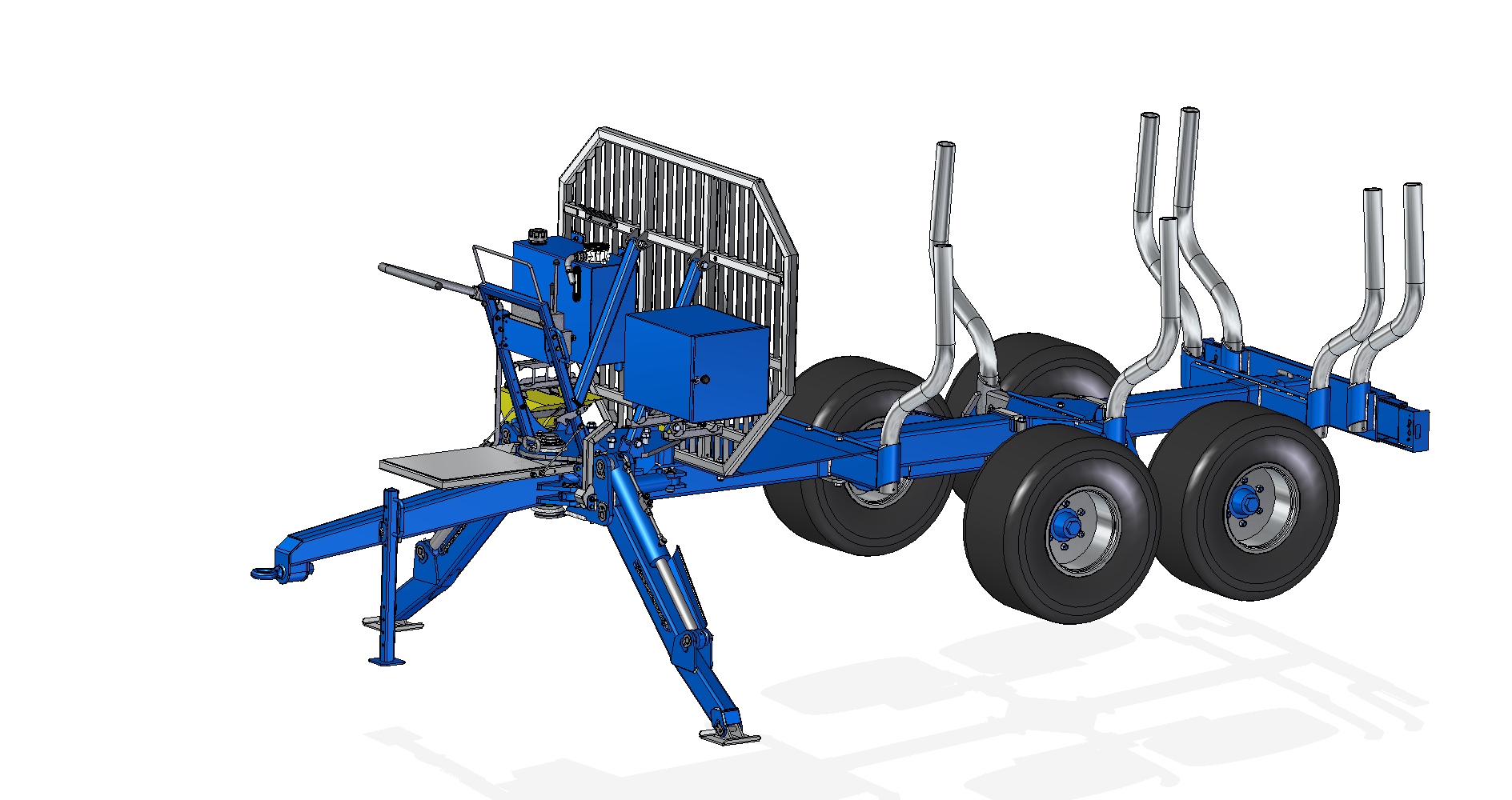

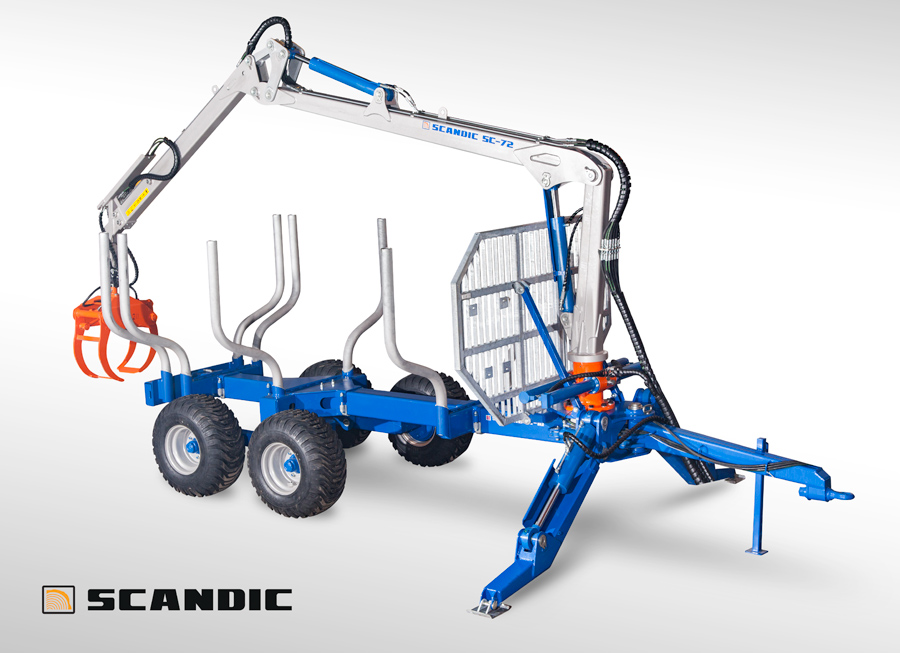

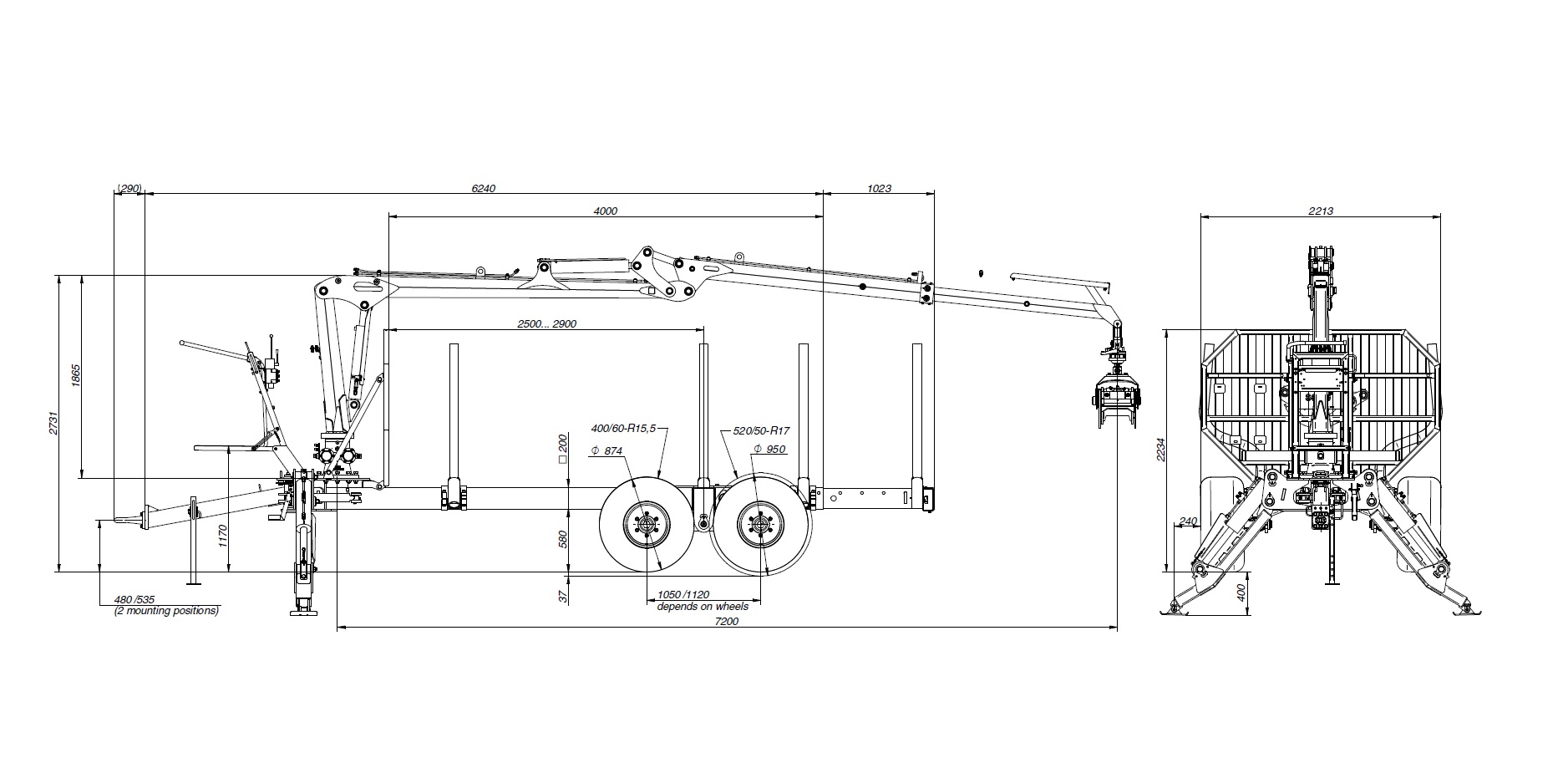

ST-10 FOREST TRAILER
Scandic ST-10 forest trailer is preferred by professionals due to it’s 10.000 kg loading capacity and extra large loading area. ST-10 is also available in double frame version.
ST-10 has 40 degrees drawbar rotation and tandem angle tilt 20 degrees.
ST-10 features:
- - Drawbar angle +/- 40 degrees, tandem angle +/- 20 degrees
- - Type-A or type-B support legs with moving footing
- - Zinc coated tubes and shield
- - 1950 kg weight with load capacity up to 10.000 kg
- - street legal lights
Additional extras:
- - hydraulic or air brakes
- - 2WD / 4WD inner drum drive
- - Frame extension
- - Independent hydraulic system
ST-10 can be equipped with cranes SC-65, SC-72 or SC-83.
View other products:

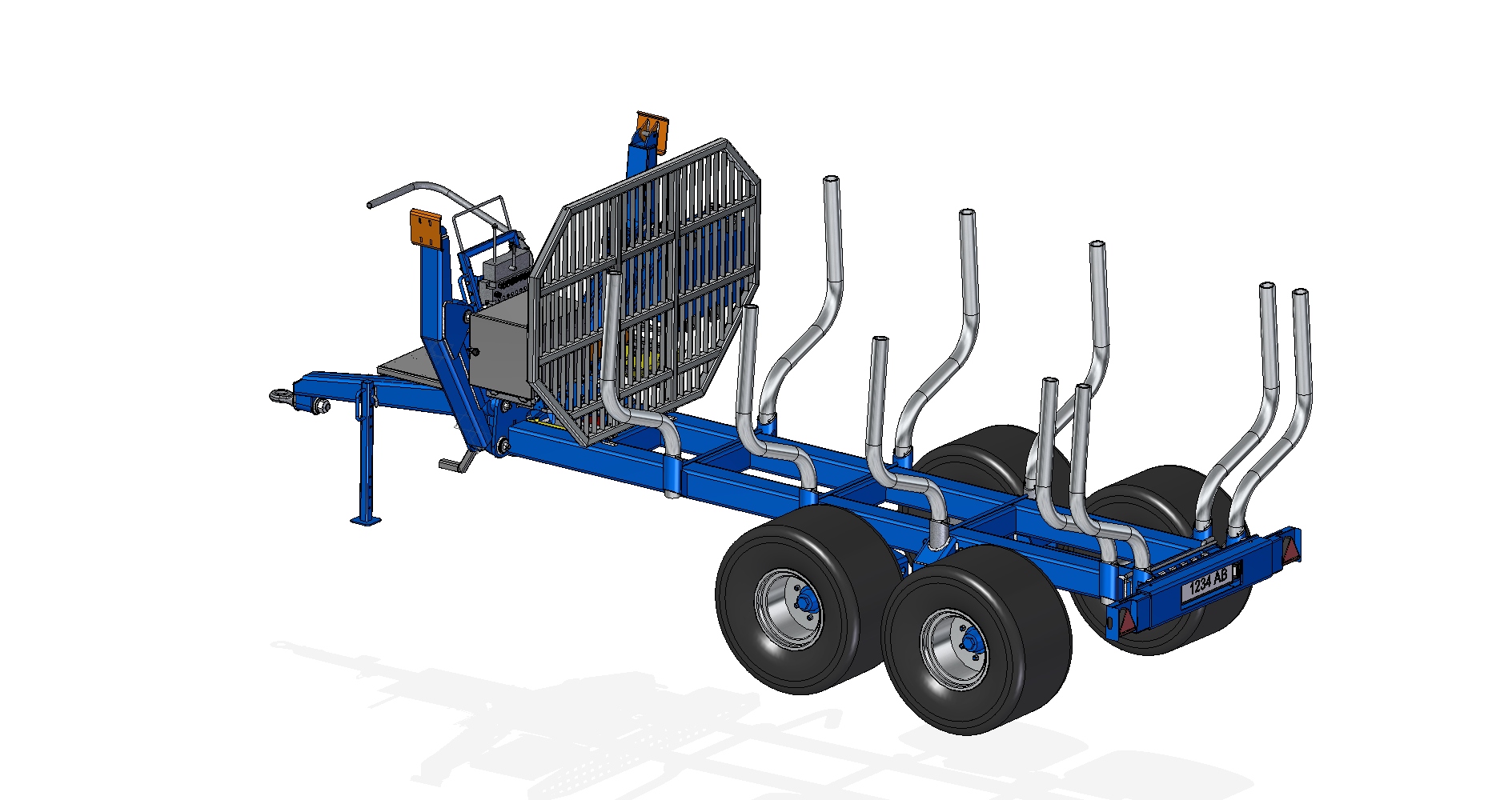

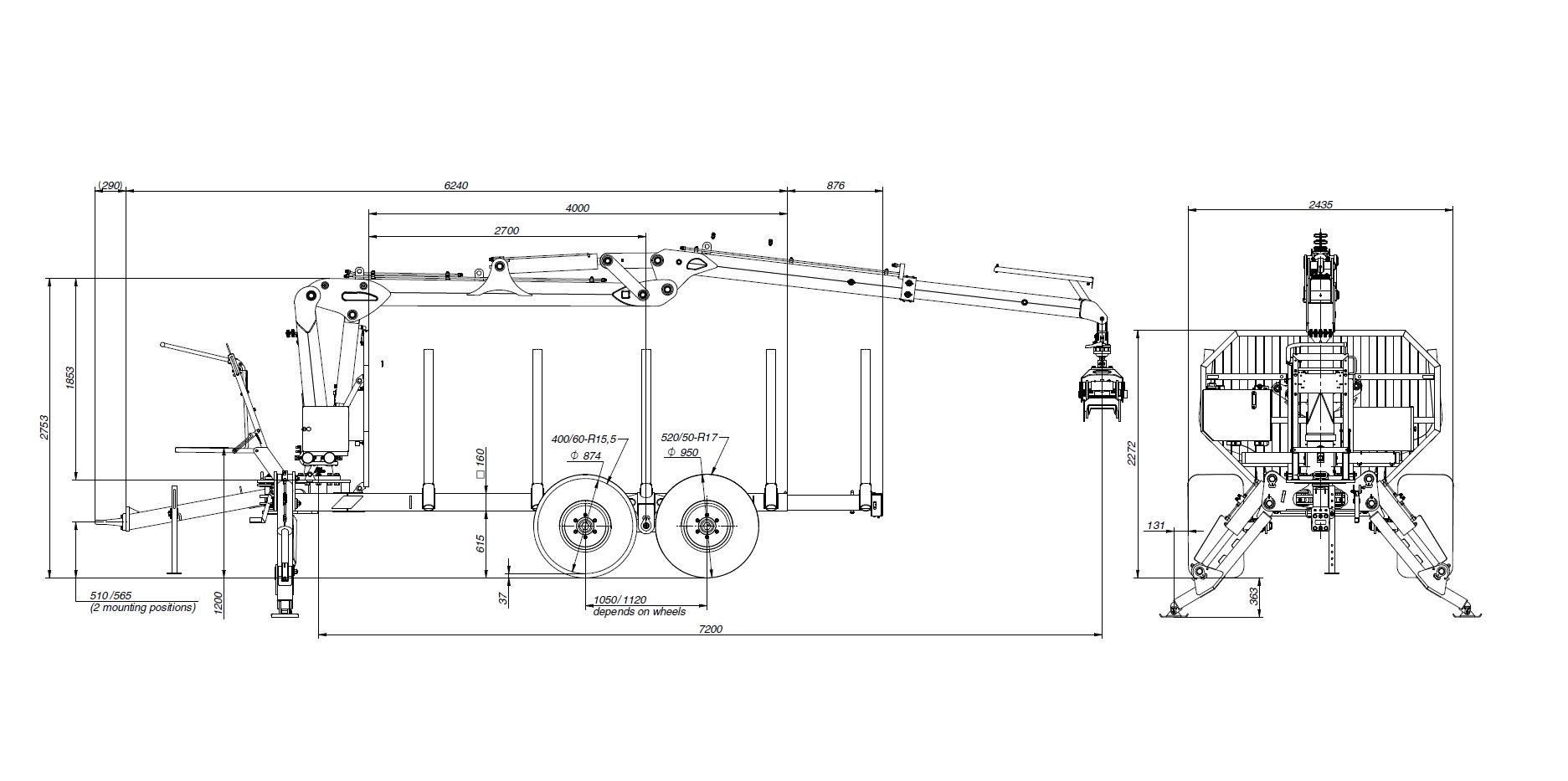

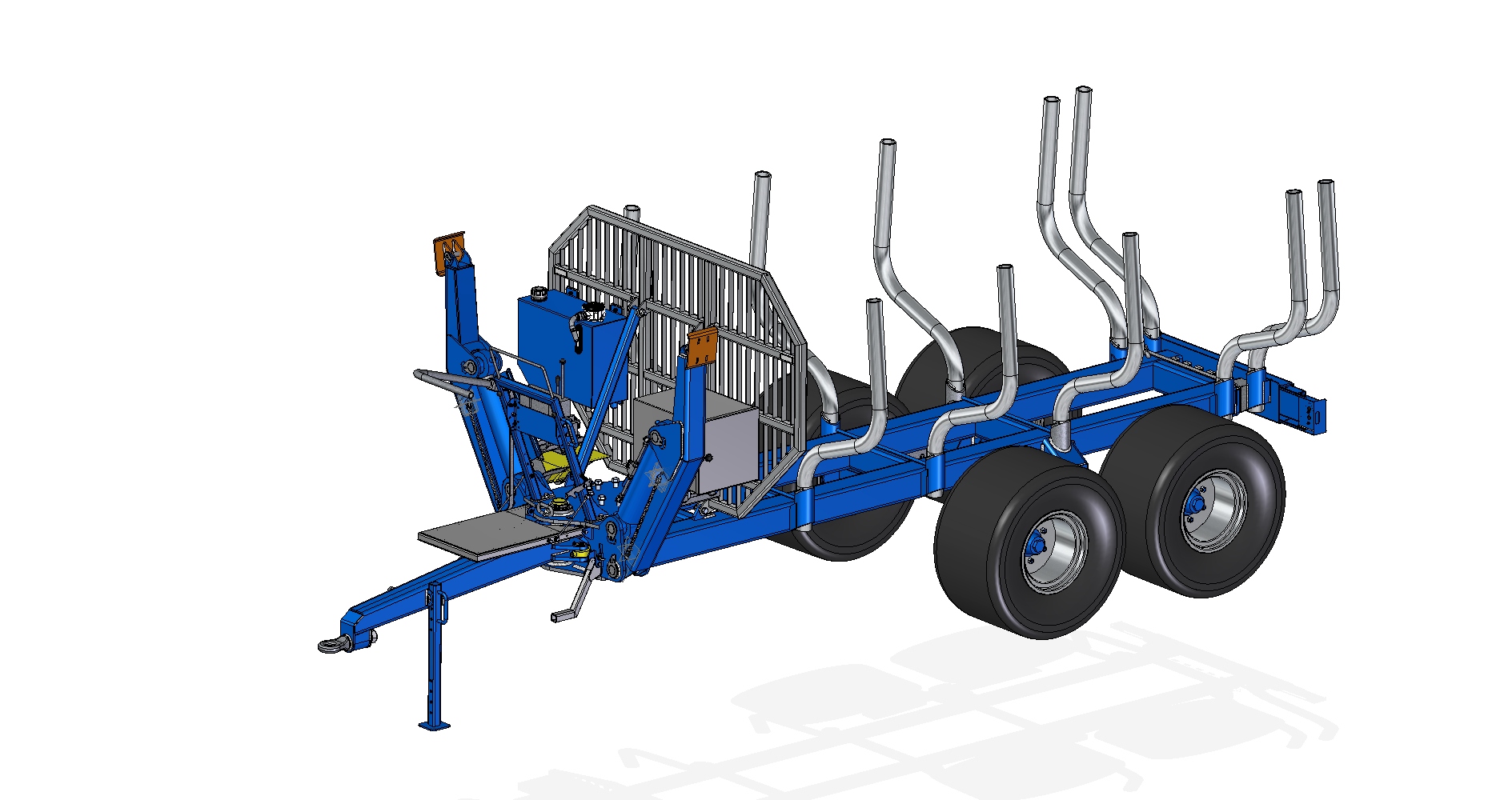

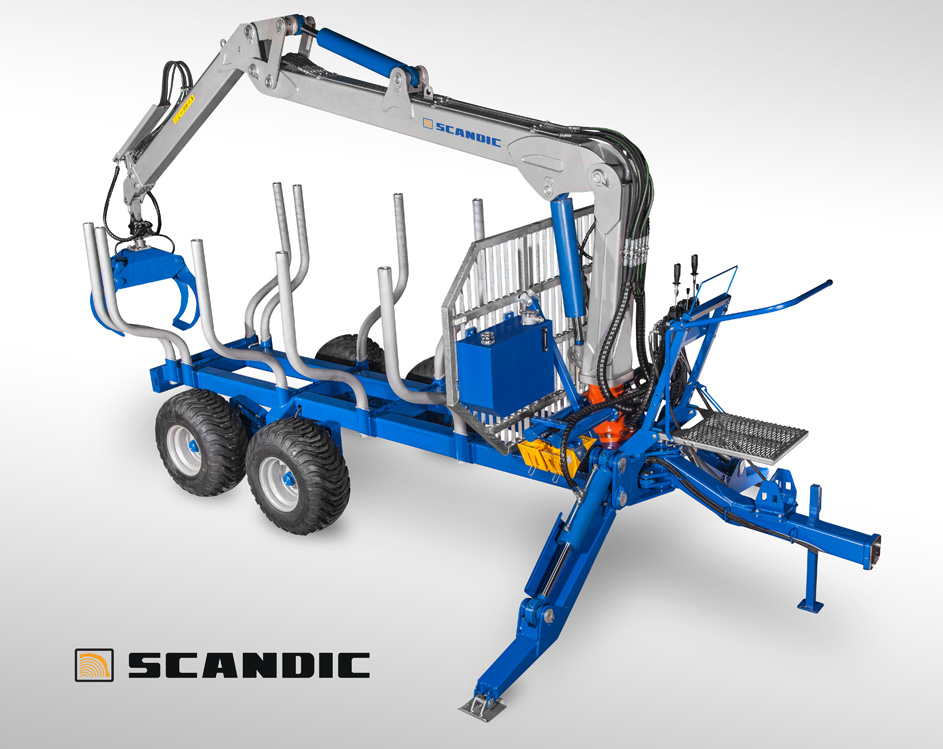

ST-10D FOREST TRAILER
Scandic ST-10D forest trailer is designed to withstand heavy use. Preferred by professionals due to it’s 10.000 kg loading capacity, extra large loading area and durable double frame design.
ST-10D has 40 degrees drawbar rotation and tandem angle tilt 20 degrees.
ST-10D features:
- - Drawbar angle +/- 40 degrees, tandem angle +/- 20 degrees
- - Type-B support legs with moving footing
- - Zinc coated tubes and shield
- - 2200 kg weight with load capacity up to 10.000 kg
- - street legal lights
Additional extras:
- - hydraulic or air brakes
- - 2WD / 4WD inner drum drive
- - Frame extension
- - Independent hydraulic system
ST-10D can be equipped with cranes SC-65, SC-72 or SC-83.
SCANDIC TRAILER

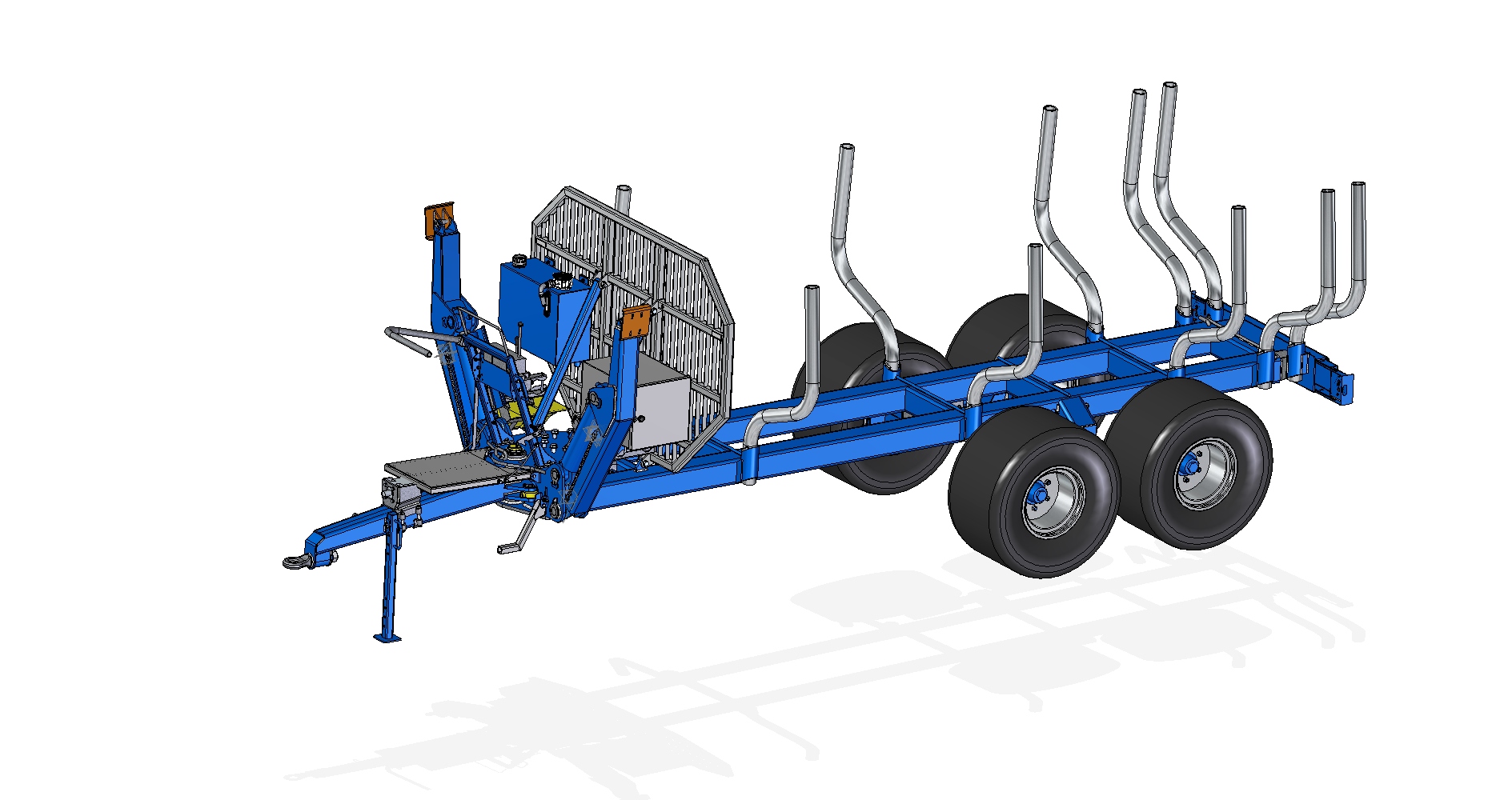

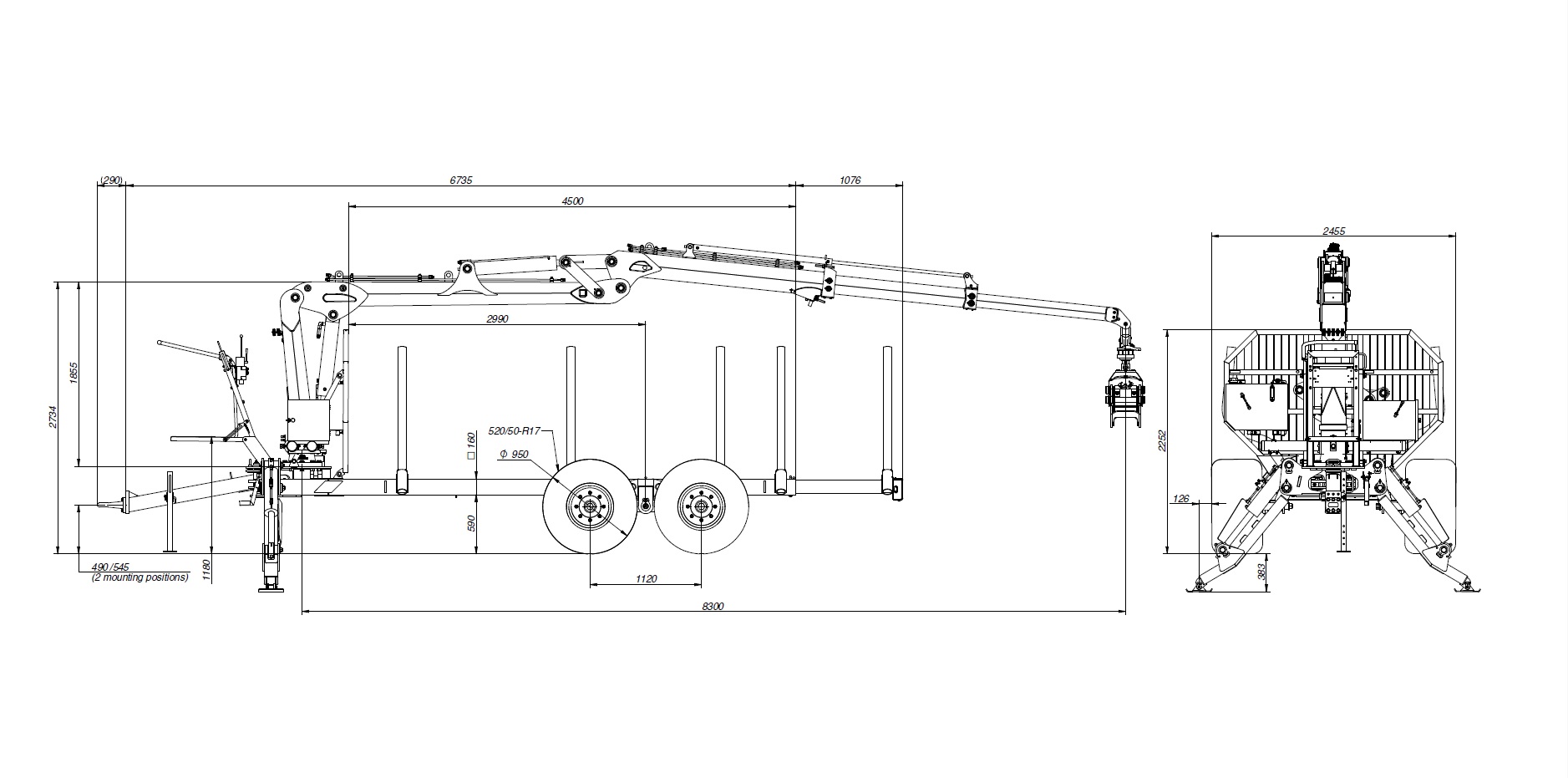

ST-12D
Scandic ST-12D forest trailer is designed to withstand heavy use as it is further strengthened by a powerful double beamed frame. It is preferred by professionals due to its 12.000 kg loading capacity and extra-large loading area that allows carrying up to 6m timber or a double load of 3m timber. Its’ perfect output is clearcutting works and forest thinning, but it is also an indispensable aid for transporting energy wood and pulpwood.
ST-12D has 40-degree drawbar rotation and tandem angle tilt of 20 degrees. Extra parts can be added to meet the customer’s needs.
ST-12D features:
- - 2350 kg weight with load capacity up to 12.000 kg
- - Drawbar angle +/- 40 degrees, tandem angle +/- 20 degrees
- - Type-B support legs with movable footing
- - Zinc coated tubes and shield
- - street legal lights
- - 520/50-17" tires
Optional extras:
- - hydraulic or air brakes
- - 2WD / 4WD inner drum drive
- - Platform with the valve holder for the ease of use
- - Frame extension
- - Cooling radiator
- - Toolbox
- - Independent hydraulic system with either a gear wheel or piston rod pump and a hydraulic tank
ST-12D can be equipped with cranes SC-65, SC-72, SC-72 PRO or SC-83
View other products:
[/tooted]
| Trailer | ST-6 |
ST-8 |
ST-10 |
ST-10D |
ST-12D |

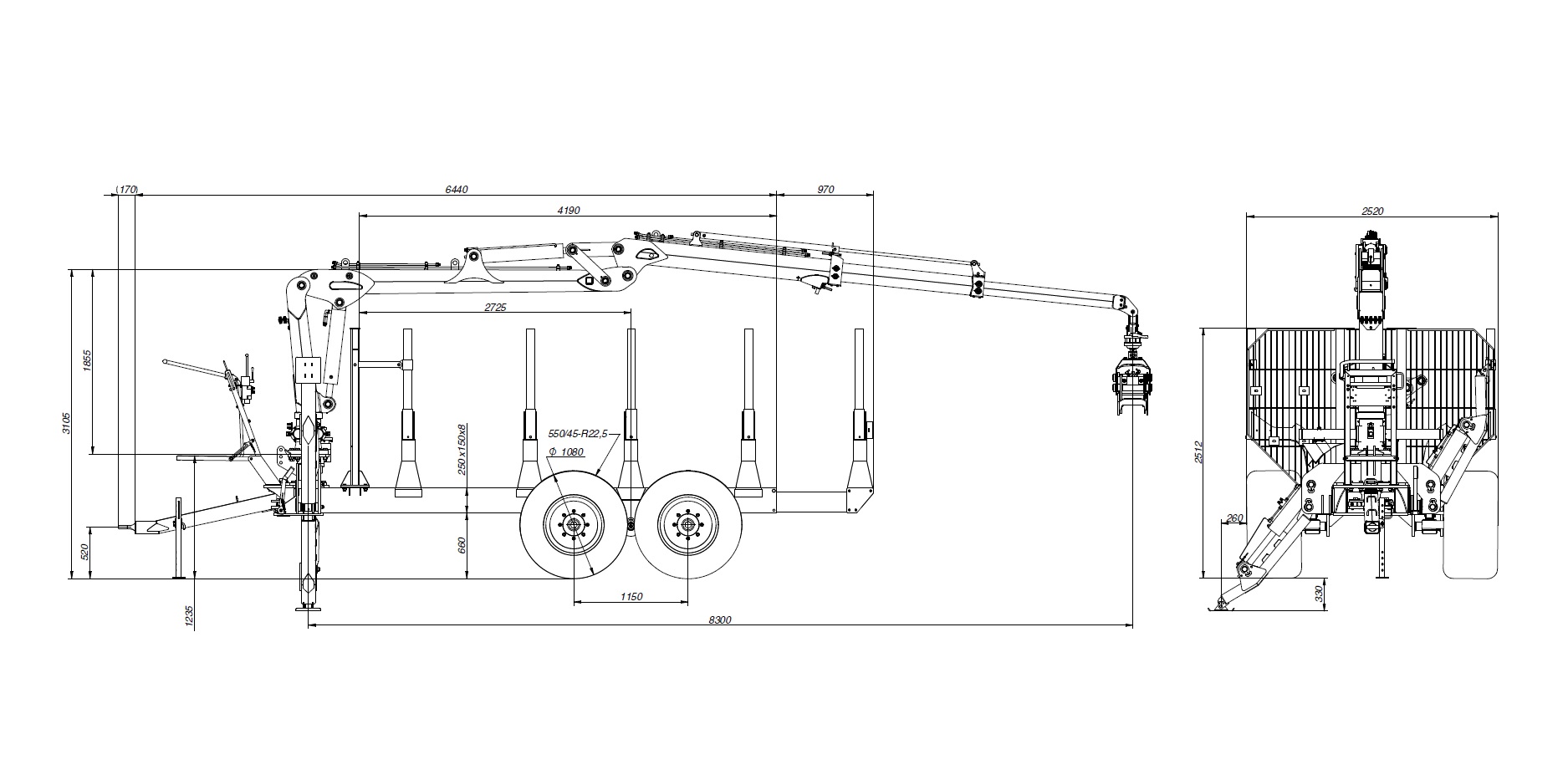

ST-15D |
| Load capacity, kg | 6000 | 8000 | 10000 | 10000 | 12000 | 15000 |
| Loading area, m2 | 1.9 | 2,2 | 2.8 | 2.8 | 2.8 | 3 |
| Axle section, mm | 55x55 | 60x60 | 70x70 | 70x70 | 70x70 | 80x80 |
| Frame section, mm | 140x140x8 | 160x160x8 | 200x200x8 | 160x160x8-2 pcs | 160x160x8-2 pcs | 250x150x8-2pcs |
| Tyre size, mm | 10/75 - R15.3 | 400/60-R15.5 |
400/60-R15,5 |
400/60-R15,5 |
520/50-R17 | 520/50-R17 |
| Length of loading area (with extension), mm | 3050 | 3510 (4240) | 4000 (5080) | 4000 (4876) | 4500 (5575) | 4190 (5050) |
| Total length (with extension), mm | 4875 | 5610 (6591) | 6240 (7134) | 6230 (7134) | 6735 (8090) | 6715 (7535) |
| Width, mm | 1830 | 2020 | 2210/2435 | 2210/2435 | 2440 | 2520 |
| Drawbar rotation | 0° | +/- 40° | +/-40° | +/-40° | +/-40° | +/-40° |
| Trailer mass, kg | 1100 | 1700 | 1950 | 2250 | 2350 | 3600 |
| 2WD or 4WD (inner drum drive) | - | + | + | + | + | + |
| Recommended with cranes |
SC-41, SC-53 |
SC-53, SC-65 |
SC-72, SC-83, SC-72PRO |
SC-72, SC-83, SC-72PRO |
SC-72, SC-83, SC-72PRO |
SC-72, SC-83, SC-72PRO |
| Brakes: hydraulic (H), pnemuatic (P), overrun (O) | H, O | H, P, O | H, P | H, P | H, P | H, P |
| Support legs A-legs/B-legs | A | A/B | A/B | B | B | B |
| Independent hydraulic system | + | + | + | + | + | + |
| Frame extension | - | + | + | + | + | + |
